AMUSE R1TITAN EXTRA STTI Gold Ring Catback Exhaust (FL5)

Main Diameter: 70Φ

Sub-Tail Inner Pipe Diameter: 60Φ

Silencer Type: Dual In-Line Cannon Silencer

Inner Pipe Diameter: 60Φ

Tail Diameter: One 120Φ and Two 100Φ

Remarks:

Weight: 9.4kg

Stock Weight: 18.02kg

Remarks:

The photo shows the Sub-Tail Co-burning Option Specification (+12,000 yen at 2 locations).

Box Size: 2200mm × 220mm × 660mm

Accessories: Special Mounting Titanium Stay & Special Titanium Bolt Nut

We pursued the comfortable sound that only titanium can provide in order to further bring out the performance of a high performance vehicle while ensuring comfort in city driving.

The main pipe is 70φ, 60φ inside the sub-silencer, and the three main silencers are set to a capacity of 80φ or more. This full titanium muffler stimulates the driver’s senses with a light blowing sound at high RPM range and maintains torque at low RPM range.

The stock valve motor is installed and can be connected via a coupler-on connection, eliminating the need for error codes.

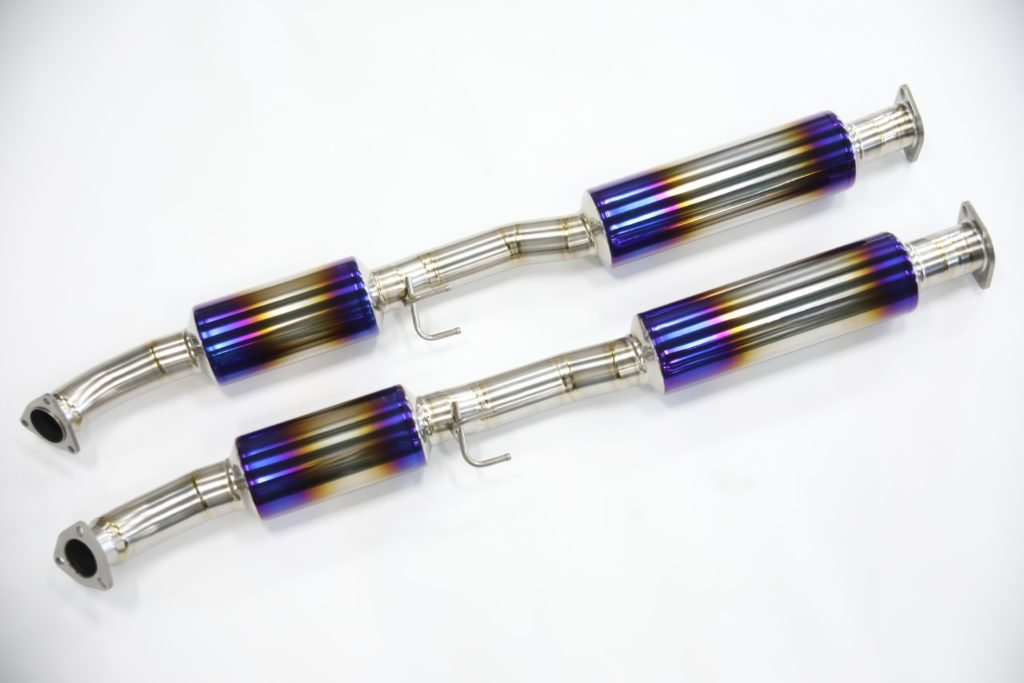

The center pipe is equipped with a high-capacity silencer and a silencer on the front side.

The upper photo shows the 70Φ front pipe for EXTRA and the lower photo shows the 76.3Φ front pipe for Performa.

The main silencer is a 3-piece megaphone structure with a capacity of over 85Φ.

The tail end is sized at

Center 120Φ

left and right 100Φ

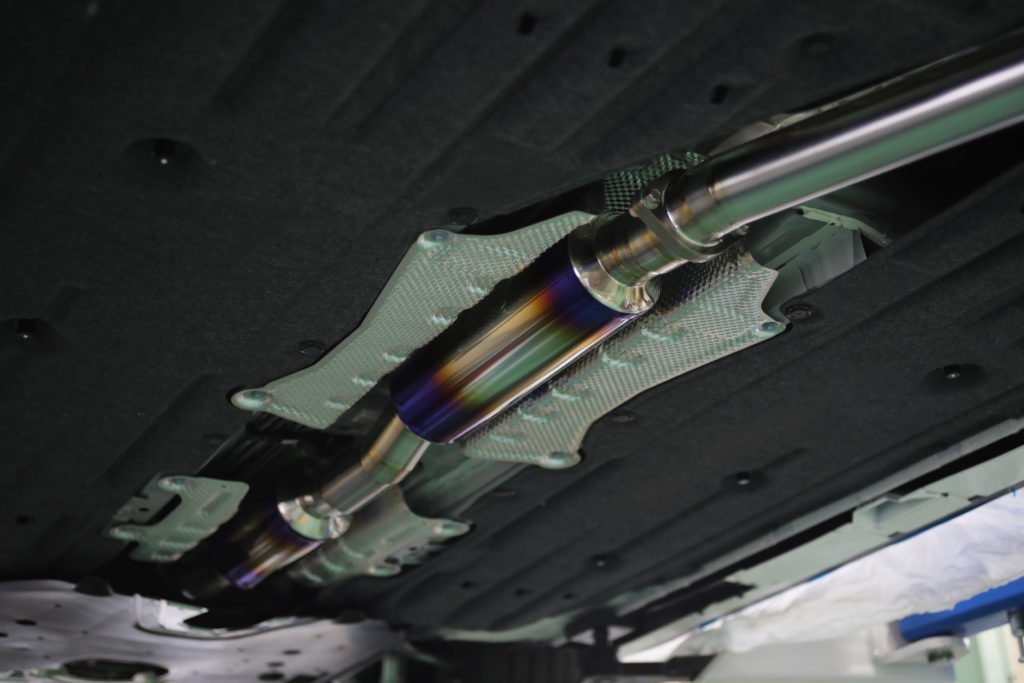

In order to secure minimum ground clearance, the silencer was manufactured in a shape that follows the floor as much as possible while maintaining the factory layout.

The model has been manufactured without compromising on appearance, weight reduction, sound quality, and everything.

Tail end logo is optional.
